Description

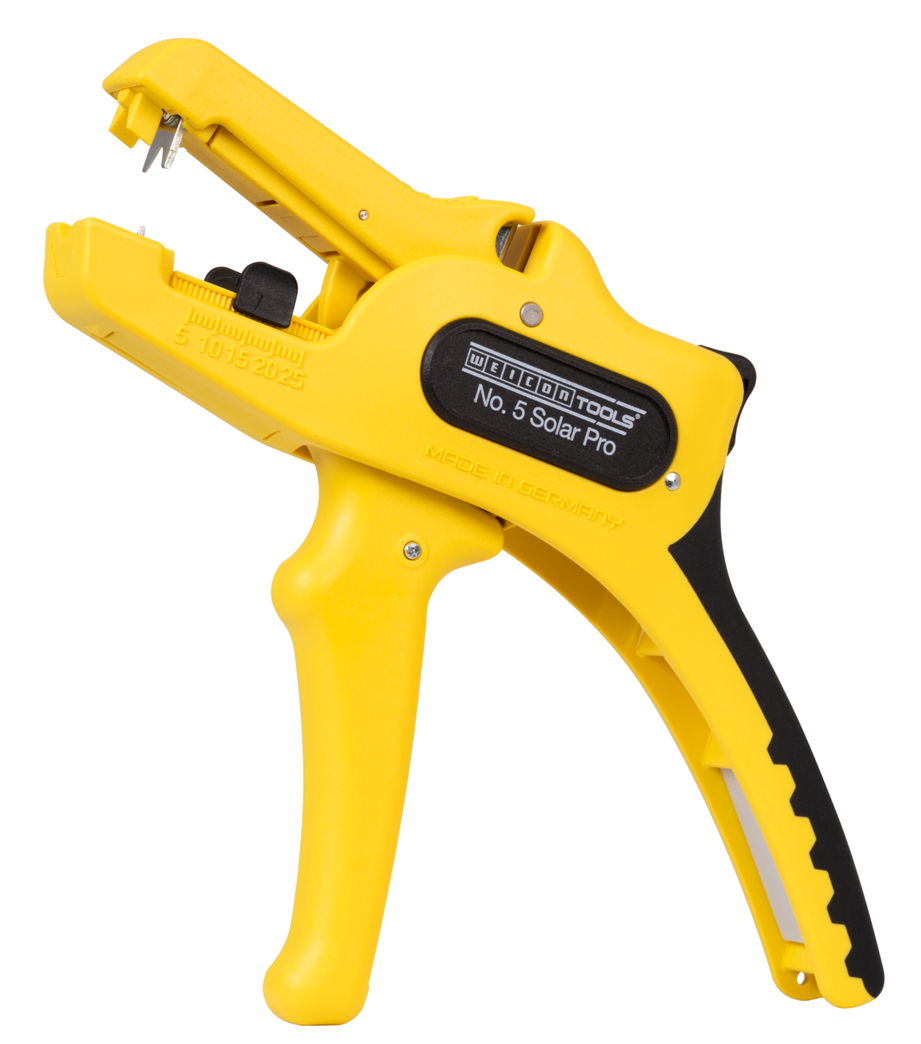

Special tool for stripping and removing insulation of standard solar cables, featuring a large, powerful working range from 1.5 mm² to 10 mm². Precise work is enabled by an adjustable length stop (5 - 25 mm), alongside an integrated, easily accessible side cutter for copper and aluminium up to 3 mm Ø, and an ergonomically shaped, non-slip multi-component handle.

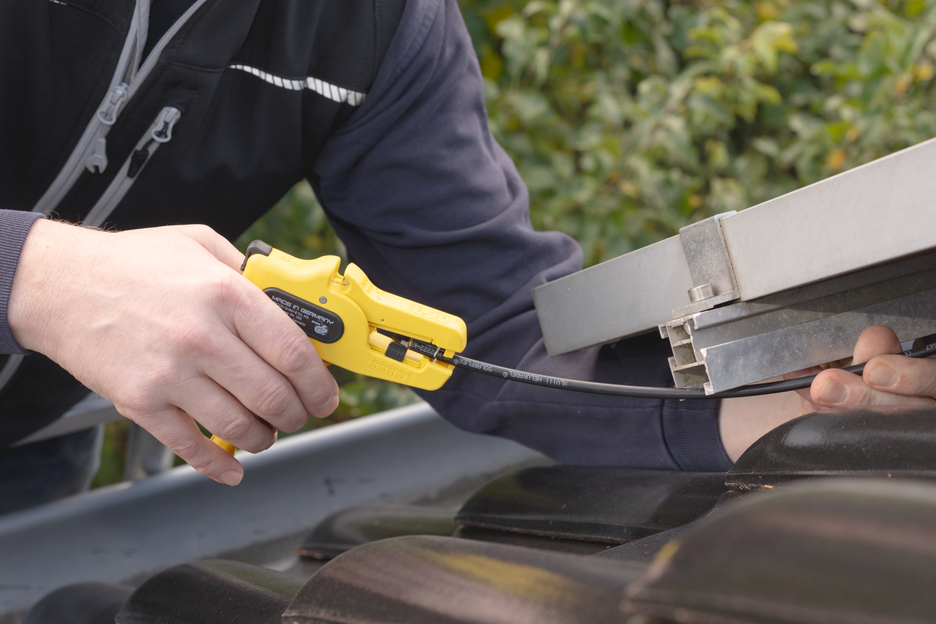

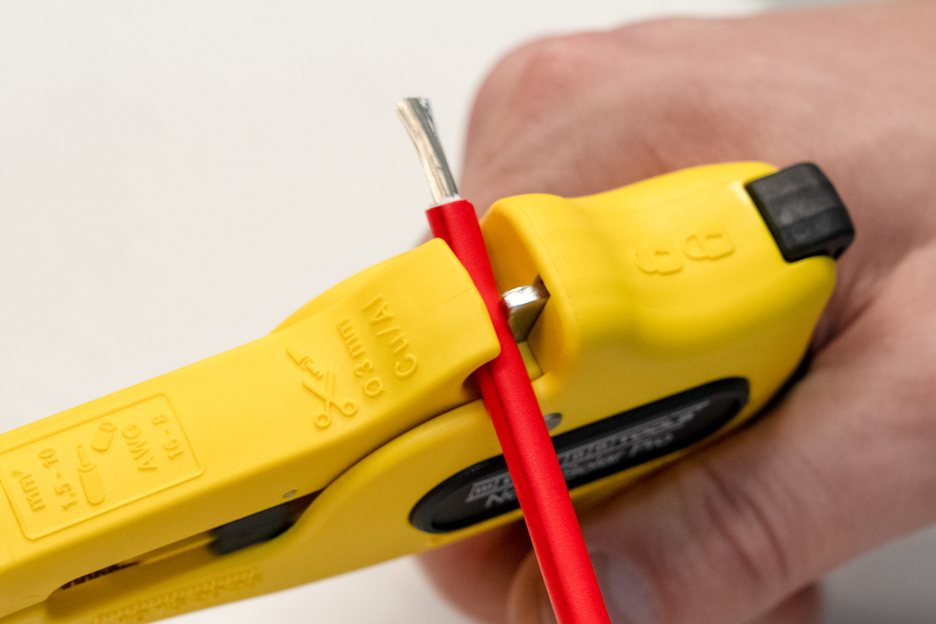

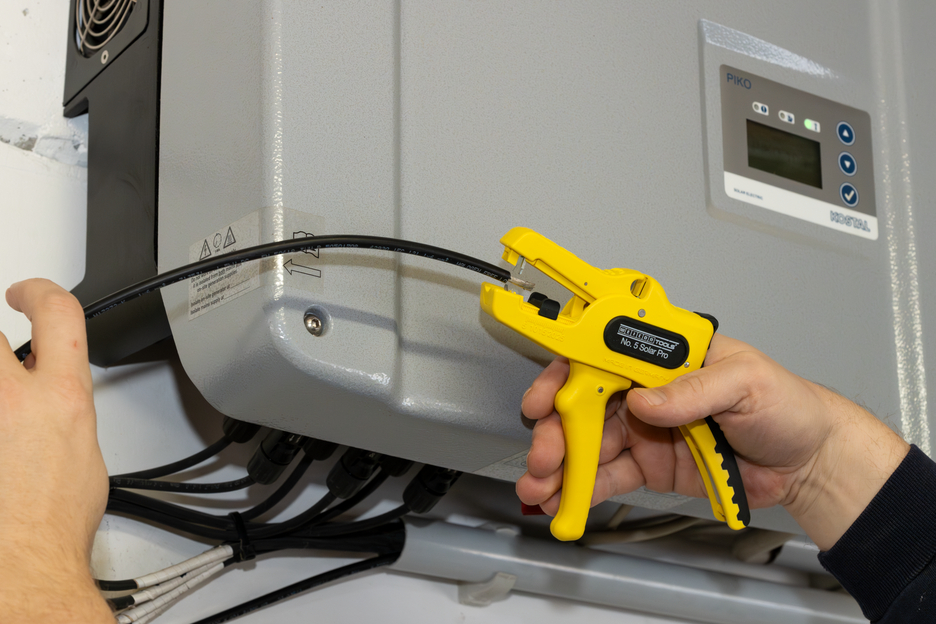

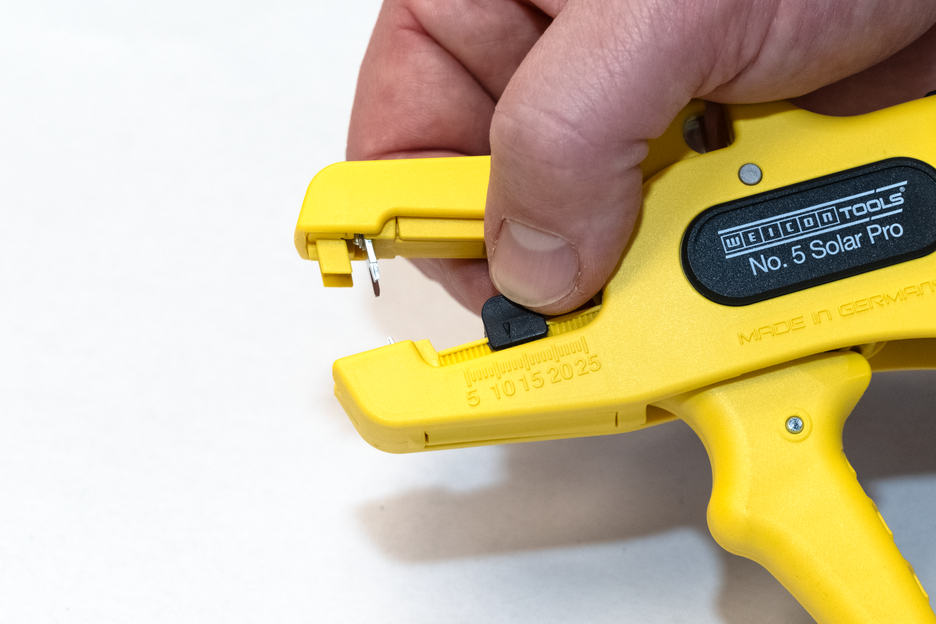

The automatic wire stripper is used for stripping all standard solar cables, such as H1Z2Z2-K, from 1.5 to 10 mm². An adjustable length stop from 5 to 25 mm enables very precise and accurate work. The blades of the No. 5 Solar Pro wire stripper have been additionally hardened to easily remove multi-layer rubberized insulation. If required, the length stop can also be removed. The pliers automatically adjust to the respective conductor cross-section – so no manual adjustment is necessary. A wire cutter for copper and aluminium conductors up to a diameter of three millimetres has been integrated into the pliers. Due to the slim design of the tool, the pliers can also be used in hard-to-reach work areas, such as on solar modules or the inverter. The mechanism of the pliers is very smooth-running and has proven to be durable and reliable in tests. The pliers feature a non-slip multi-component handle in the yellow-black \"Ice-Crack\" design. The wire stripper has an eyelet to which a drop protection strap can be attached and has been equipped with a labelling area to individualise the tool. In addition, the pliers can be locked and thus stored to save space. As with all wire strippers in the No. 5 product line, the galvanised blades are exchangeable.
Downloads
Information
- Tool
Login
1 review
16 January 2026 07:25
Pinza Spelafili No. 5 Solar Pro
Ho recentemente acquistato la WEICON Pinza Spelafili No. 5 Solar Pro e devo dire che è uno strumento eccezionale per lavorare con i cavi solari. La possibilità di sguainare cavi da 1,5 mm² a 10 mm² con una lunghezza regolabile è incrediblimente utile, e ho apprezzato molto la tronchesina integrta per i conduttori in rame e alluminio. L'impugnatura ergonomica e antiscivolo rende il lavoro privo di affaticamento anche durante le lunghe sessioni, e la meccanica scorrevole garantisce una durata nel tempo. Assolutamente consigliata per chi lavora nel settore solare!
Customers also bought
($41.09* / 1 PCE)
($85.60* / 1 L)
($43.31* / 1 PCE)
($15.86* / 100 ml)
($59.12* / 1 L)
($29.75* / 1 PCE)
Customers also viewed
Product safety
Attention:
Tool not to be used on live cables or conductors.
